ADN032-E2 CARBIDE BIT
| Bit form: Miscellaneous angles |

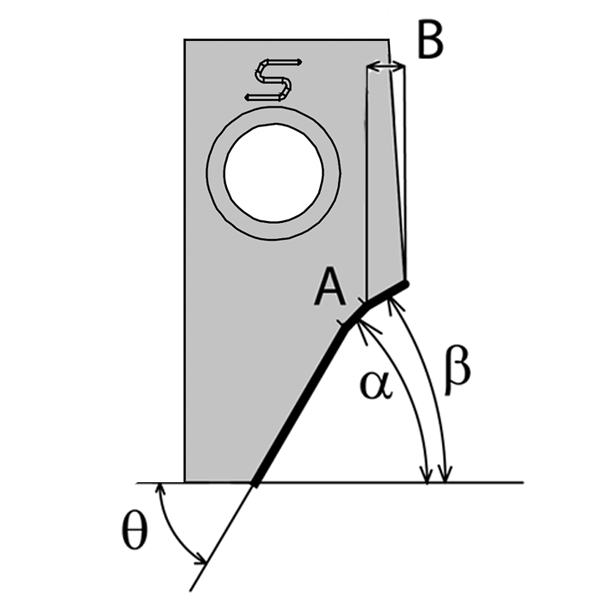

| Seat angle (α): 45° |
| Seat lenght: 2.1mm [0.0827"] - 2.5mm [0.0984"] |
| Upper clearance angle: 30° - 35° |
| Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"] |
| Lower clearance angle: 50° - 60° |
| Brut type: E2 Standard Large |
| Design: New generation |
| Radius: 0° - 5° |
Internal Reference:
925358
Seat angle (α):
45
Seat lenght (A) (A):
2.2
Radius (R):
0
Angle rake:
8
Lower clearance angle (Thêta):
60
Upper clearance angle (Beta):
30
Upper clearance lenght (B):
1.4
Bit form:
3
