CUTTING BLADE 45.00- 1.30
| Bit form: Miscellaneous angles |

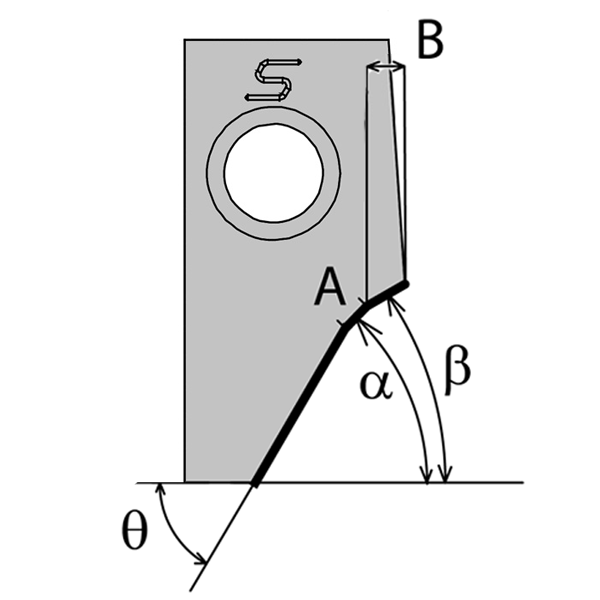

| Seat angle (α): 45° |
| Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"] |
| Upper clearance angle: 30° - 35° |
| Upper clearance lenght: 2.01mm [0.0787"] - ∞ |
| Lower clearance angle: 50° - 60° |
| Brut type: E2 Standard Large |
| Design: New generation |
| Radius: 0° - 5° |
Internal Reference:
924191
Old FR code:
H1X1E2
Seat angle (α):
45
Seat lenght (A) (A):
1.3
Radius (R):
1
Angle rake:
8
Lower clearance angle (Thêta):
56
Upper clearance angle (Beta):
35
Upper clearance lenght (B):
2.1
Bit form:
3
