CUTTING BLADE 46.00- 1.15
| Bit form: Miscellaneous angles |
| Seat angle (α): 46° |
| Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"] |
| Upper clearance angle: 30° - 35° |
| Upper clearance lenght: 2.01mm [0.0787"] - ∞ |
| Lower clearance angle: 60° - 70° |
| Brut type: B1 Wide & Large |
| Design: Original |
| Radius: 0° - 5° |
Internal Reference:
034403

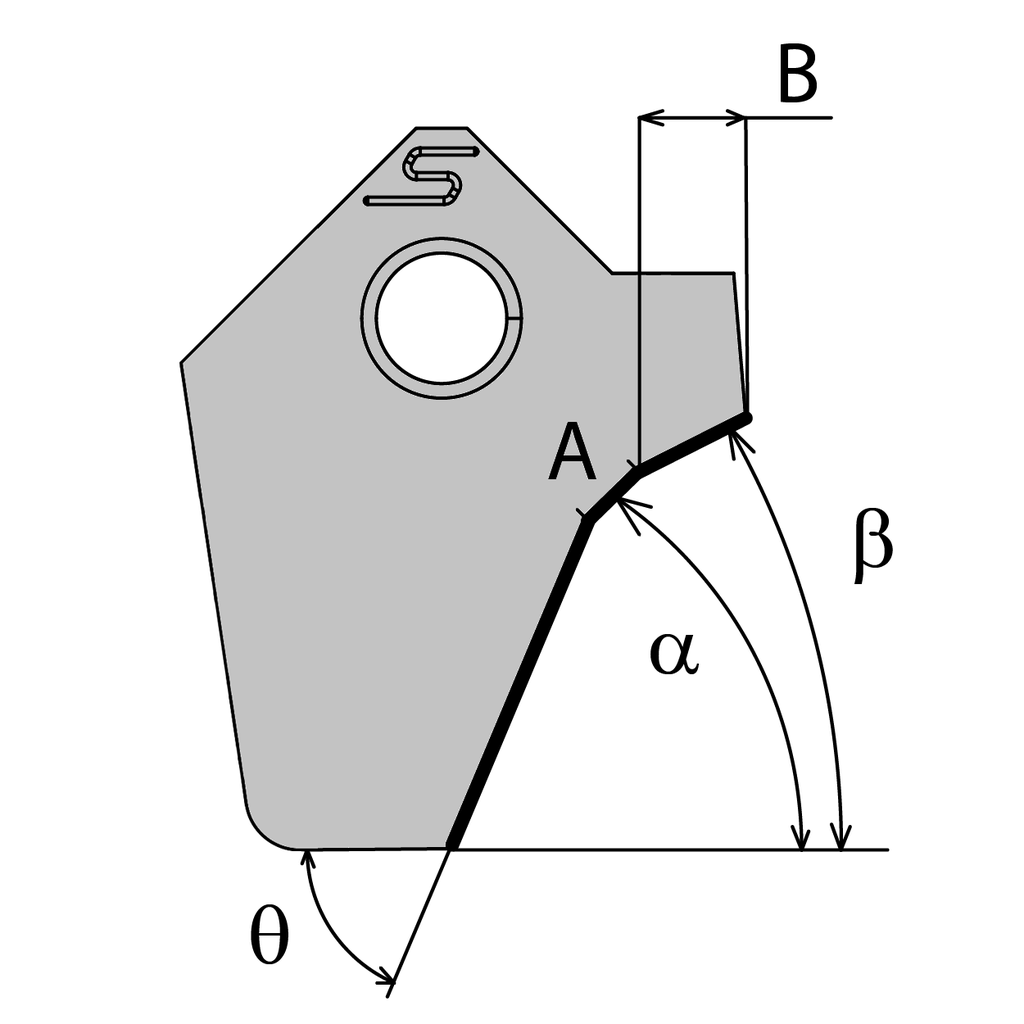

Seat angle (α):
46
Seat lenght (A) (A):
1.15
Radius (R):
0
Angle rake:
8
Lower clearance angle (Thêta):
65
Upper clearance angle (Beta):
30
Upper clearance lenght (B):
2.6
Bit form:
3
