22R45V60-A1 CARBIDE BIT

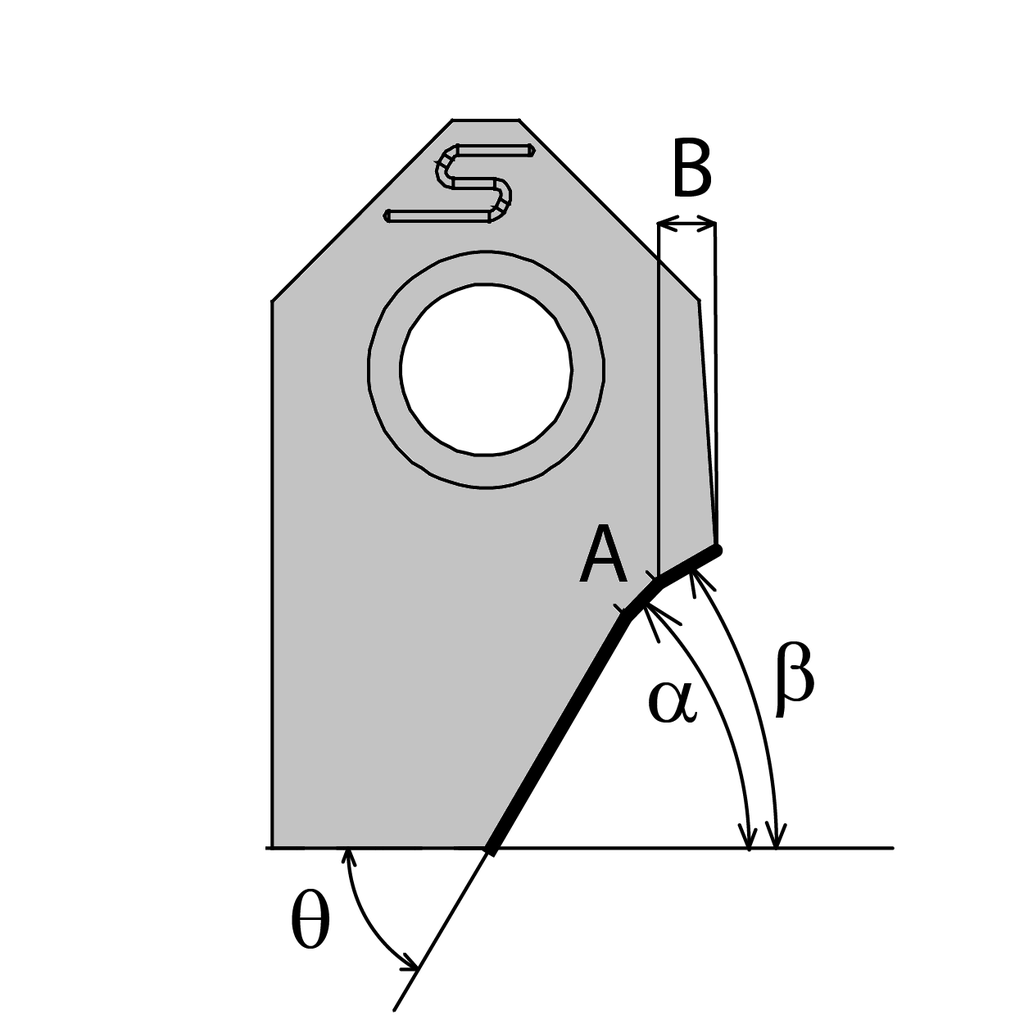

| Bit form: Miscellaneous angles |
| Seat angle (α): 45° |
| Seat lenght: 2.1mm [0.0827"] - 2.5mm [0.0984"] |
| Upper clearance angle: 25° - 30° |
| Upper clearance lenght: 2.01mm [0.0787"] - ∞ |
| Lower clearance angle: 50° - 60° |
| Brut type: A1 Standard |
| Design: Original |
| Radius: 0° - 5° |
Internal Reference:
025607
Seat angle (α):
45
Seat lenght (A) (A):
2.2
Radius (R):
0
Angle rake:
8
Lower clearance angle (Thêta):
60
Upper clearance angle (Beta):
25
Upper clearance lenght (B):
3.6
Bit form:
3
