PLAQUETTE DE FORME 50,00- 1,40

Bit form - Miscellaneous angles
Seat angle (α)
Seat lenght
Upper clearance angle
Upper clearance lenght
- 1.01 [0.0393"] - 2mm [0.0709"]
Lower clearance angle
Brut type
- E2 Standard Large
Design
- New generation
Radius
- 0mm to 5mm

Ajouter à la liste de souhaits

Contactez-nous

Bit form: Miscellaneous angles

Seat angle (α): 50°

Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"]

Upper clearance angle: 30° - 35°

Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"]

Lower clearance angle: 60° - 70°

Brut type: E2 Standard Large

Design: New generation

Radius: 0mm to 5mm

Référence interne: 932304

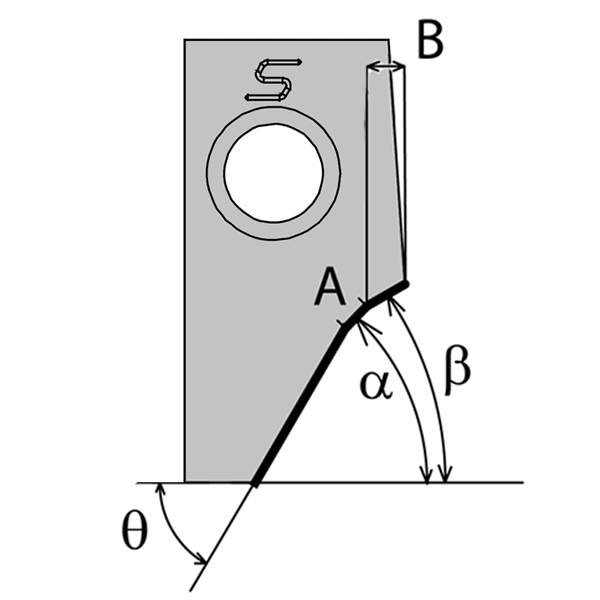

Seat angle (α): 50
Seat width (A): 1.4
Radius (R): 2
Draft angle: 8
Bottom Clearance angle (Thêta): 65
Upper clearance angle ( Beta): 35
Upper clearance width (B): 1.26
Bit form: 3
