PLAQUETTE DE FORME 20,00- 1,90

Bit form - Miscellaneous angles
Seat angle (α)
Seat lenght
Upper clearance angle
Upper clearance lenght
- 1.01 [0.0393"] - 2mm [0.0709"]
Lower clearance angle
Brut type
- E2 Standard Large
Design
- New generation
Radius
- 0mm to 5mm

Ajouter à la liste de souhaits

Contactez-nous

Bit form: Miscellaneous angles

Seat angle (α): 20°

Seat lenght: 1.51mm [0.0594"] - 2mm [0.0787"]

Upper clearance angle: 5° - 10°

Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"]

Lower clearance angle: 40° - 50°

Brut type: E2 Standard Large

Design: New generation

Radius: 0mm to 5mm

Référence interne: 930187

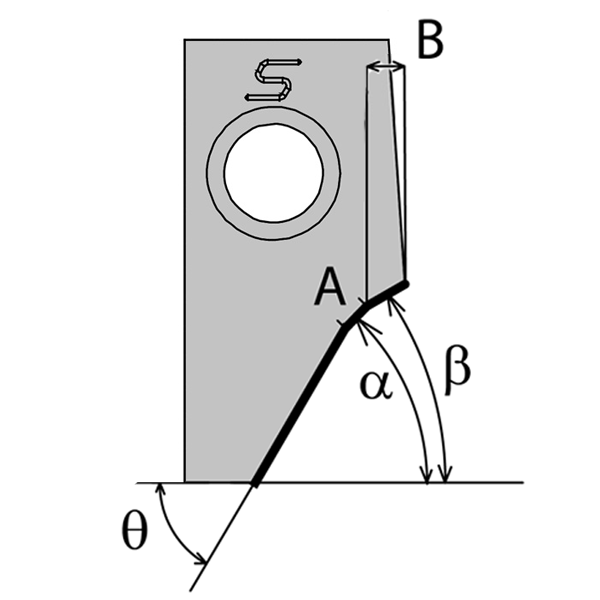

Seat angle (α): 20
Seat width (A): 1.9
Radius (R): 0
Draft angle: 8
Bottom Clearance angle (Thêta): 45
Upper clearance angle ( Beta): 10
Upper clearance width (B): 1.48
Bit form: 3
