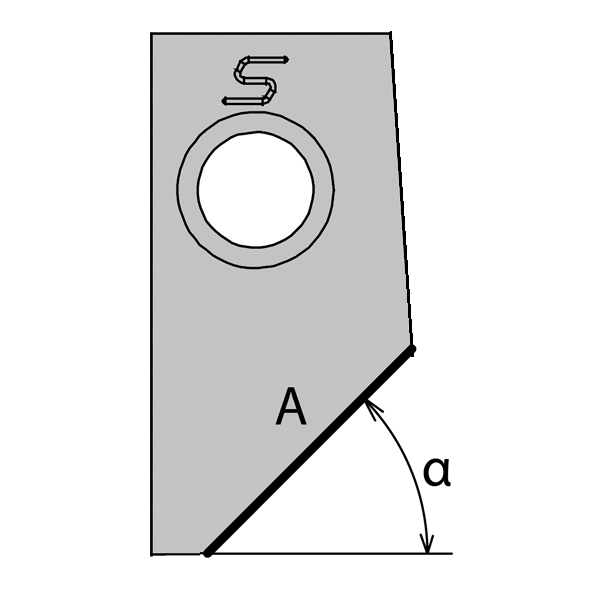

PLAQUETTE DE FORME 50,00-10,00
| Bit form: One segment |
| Seat angle (α): 0° |
| Seat lenght: 3.01mm [0.1185"] - ∞ |
| Upper clearance angle: 0° - 5° |
| Upper clearance lenght: 0mm [0"] - 1mm [0.0394"] |
| Lower clearance angle: 40° - 50° |
| Brut type: E2 Standard Large |
| Design: New generation |
| Radius: 0mm to 5mm |
Référence interne:
922391
Old FR code:
11400
Seat angle (α):
0
Seat lenght (A) (A):
10
Radius (R):
0
Angle rake:
8
Lower clearance angle (Thêta):
50
Upper clearance angle (Beta):
0
Upper clearance lenght (B):
0
Bit form:
1
