PLAQUETTE DE FORME 45,00- 1,30

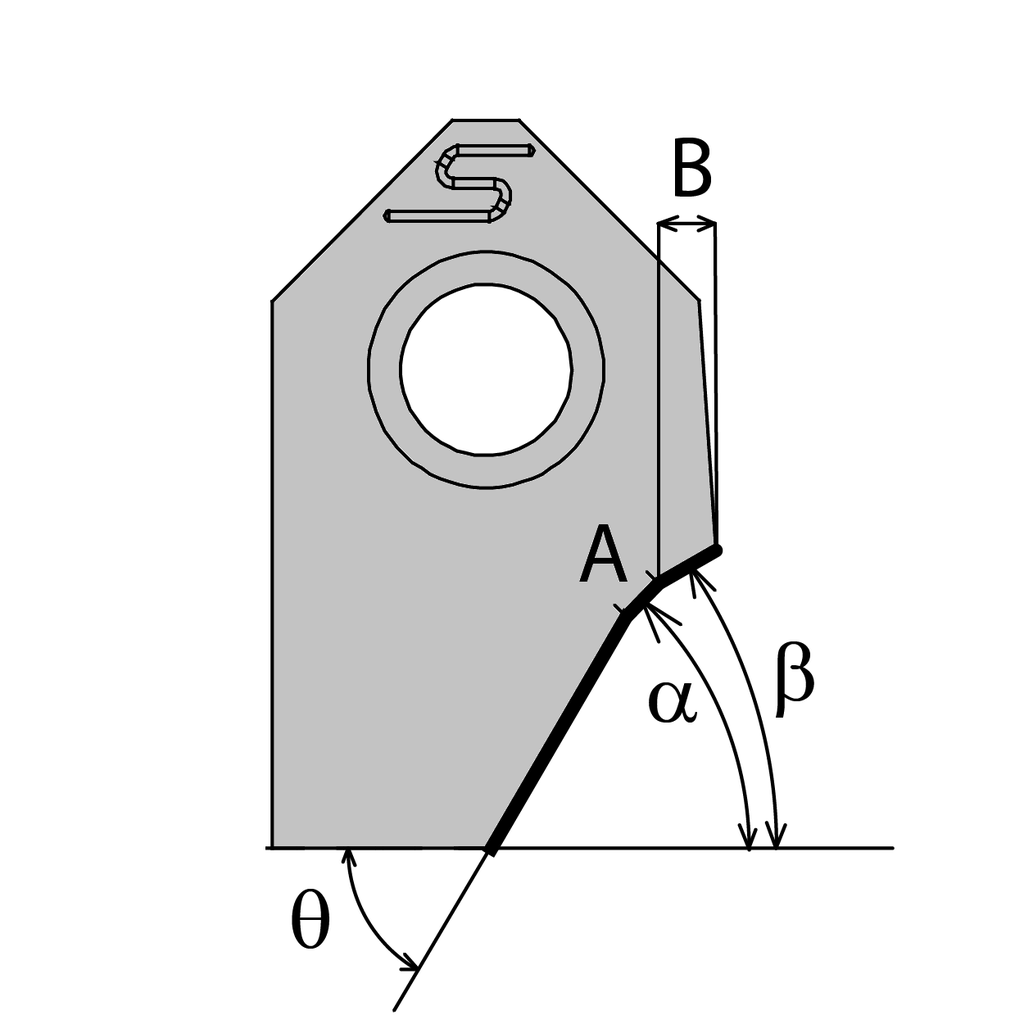

| Bit form: Miscellaneous angles |
| Seat angle (α): 45° |
| Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"] |
| Upper clearance angle: 30° - 35° |
| Upper clearance lenght: 2.01mm [0.0787"] - ∞ |
| Lower clearance angle: 50° - 60° |
| Brut type: A1 Standard |
| Design: Original |
| Radius: 0mm to 5mm |
Référence interne:
038327
Seat angle (α):
45
Seat lenght (A) (A):
1.3
Radius (R):
1.5
Angle rake:
8
Lower clearance angle (Thêta):
60
Upper clearance angle (Beta):
33
Upper clearance lenght (B):
2.02
Bit form:
3
