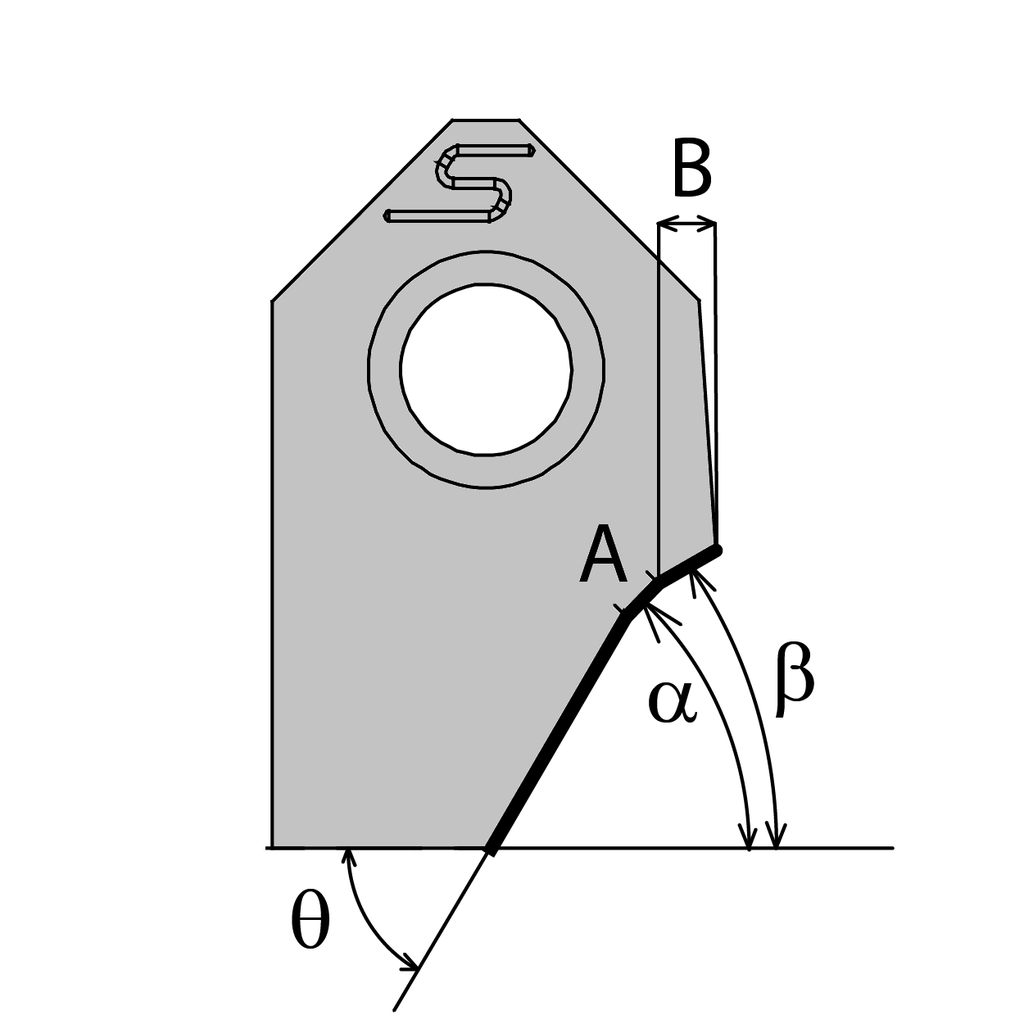

PLAQUETTE DE FORME 45,00- 1,20
| Bit form: Miscellaneous angles |
| Seat angle (α): 45° |
| Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"] |
| Upper clearance angle: 25° - 30° |
| Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"] |
| Lower clearance angle: 50° - 60° |
| Brut type: A1 Standard |
| Design: Original |
| Radius: 0mm to 5mm |
Référence interne:
035398
Old FR code:
412A1
Seat angle (α):
45
Seat lenght (A) (A):
1.2
Radius (R):
0
Angle rake:
11
Lower clearance angle (Thêta):
60
Upper clearance angle (Beta):
25
Upper clearance lenght (B):
1.4
Bit form:
3
