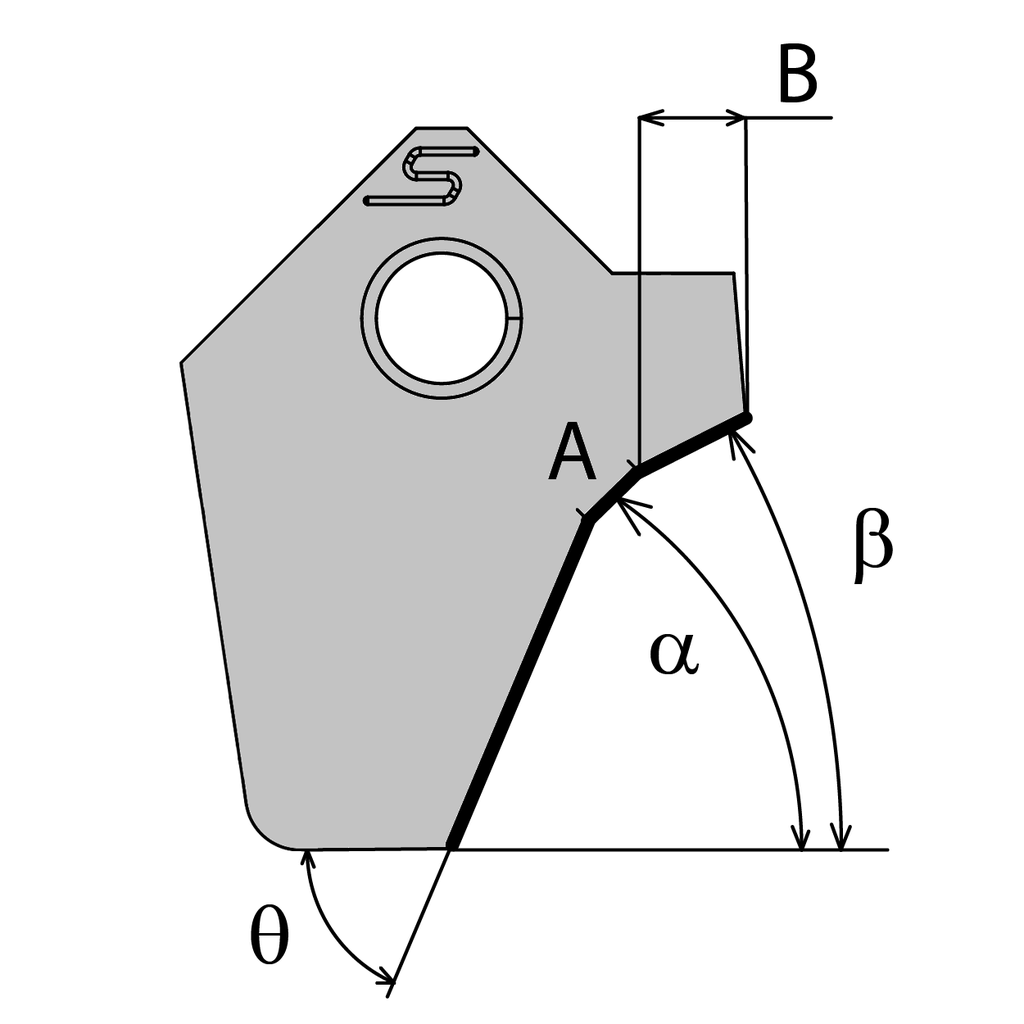

PLAQUETTE DE FORME 20,00- 2,80
| Bit form: Miscellaneous angles |
| Seat angle (α): 20° |
| Seat lenght: 2.51mm [0.0988"] - 3mm [0.1181"] |
| Upper clearance angle: 5° - 10° |
| Upper clearance lenght: 2.01mm [0.0787"] - ∞ |
| Lower clearance angle: 0° - 40° |
| Brut type: B1 Wide & Large |
| Design: Original |
| Radius: 0mm to 5mm |
Référence interne:
034277
Seat angle (α):
20
Seat lenght (A) (A):
2.8
Radius (R):
0
Angle rake:
8
Lower clearance angle (Thêta):
40
Upper clearance angle (Beta):
10
Upper clearance lenght (B):
2.5
Bit form:
3
