PLAQUETTE DE FORME 20,00- 4,70
| Bit form: Miscellaneous angles |
| Seat angle (α): 20° |
| Seat lenght: 3.01mm [0.1185"] - ∞ |
| Upper clearance angle: 10° - 15° |
| Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"] |
| Lower clearance angle: 40° - 50° |
| Brut type: A1 Standard |
| Design: Original |
| Radius: 0mm to 5mm |
Référence interne:
029562

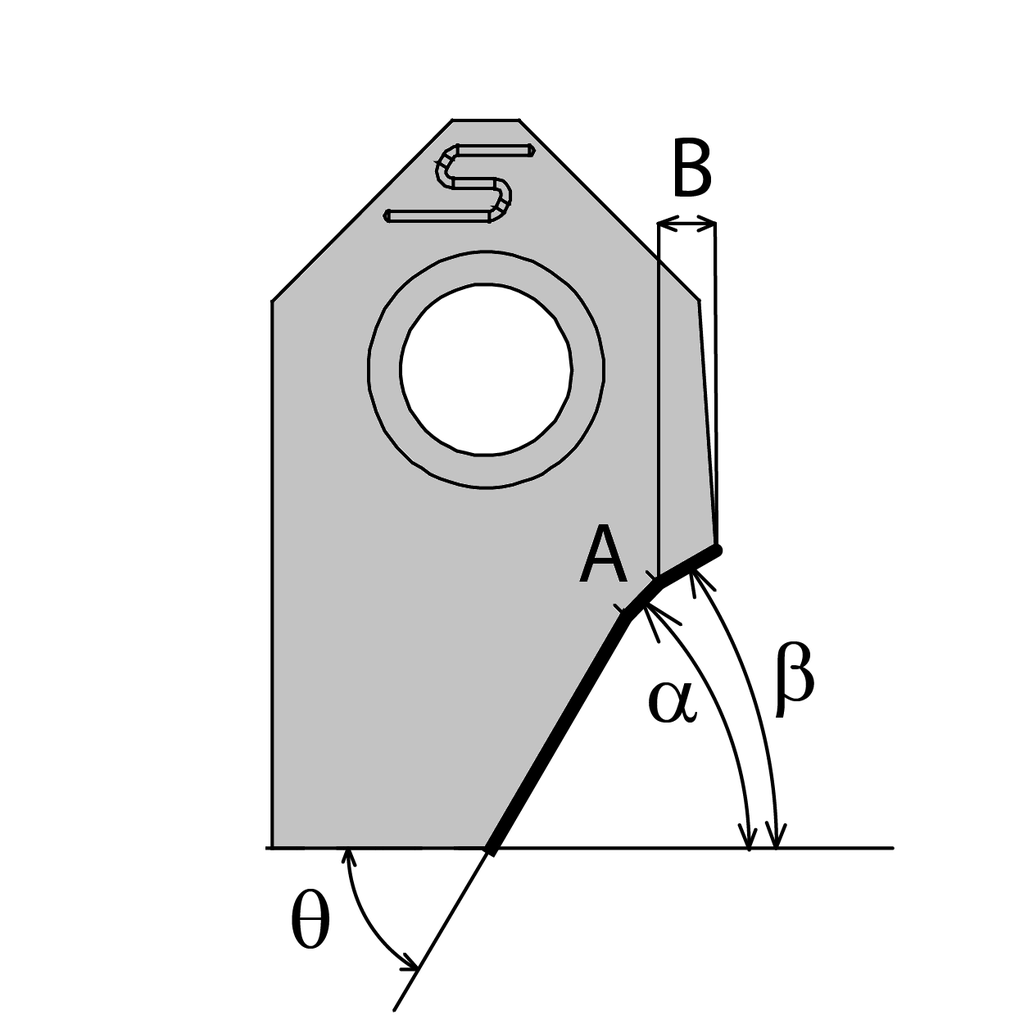

Seat angle (α):
20
Seat lenght (A) (A):
4.7
Radius (R):
0
Angle rake:
8
Lower clearance angle (Thêta):
45
Upper clearance angle (Beta):
11
Upper clearance lenght (B):
2
Bit form:
3
