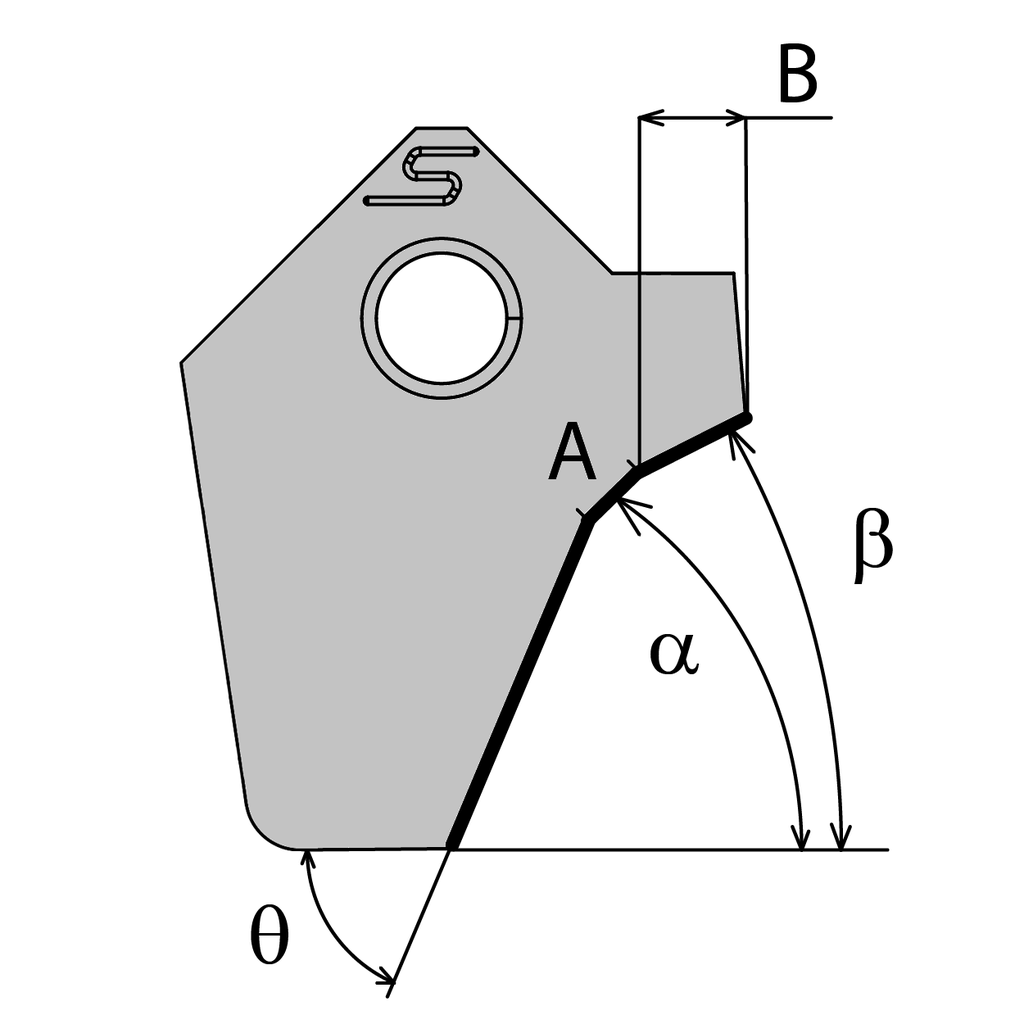

PLAQUETTE DE FORME 45,00- 1,91
| Bit form: Miscellaneous angles |
| Seat angle (α): 45° |
| Seat lenght: 1.51mm [0.0594"] - 2mm [0.0787"] |
| Upper clearance angle: 10° - 15° |
| Upper clearance lenght: 2.01mm [0.0787"] - ∞ |
| Lower clearance angle: 50° - 60° |
| Brut type: B1 Wide & Large |
| Design: Original |
| Radius: 0mm to 5mm |
Référence interne:
025609
Old FR code:
S1101-B1
Seat angle (α):
45
Seat lenght (A) (A):
1.91
Radius (R):
0
Angle rake:
8
Lower clearance angle (Thêta):
60
Upper clearance angle (Beta):
15
Upper clearance lenght (B):
4.35
Bit form:
3
