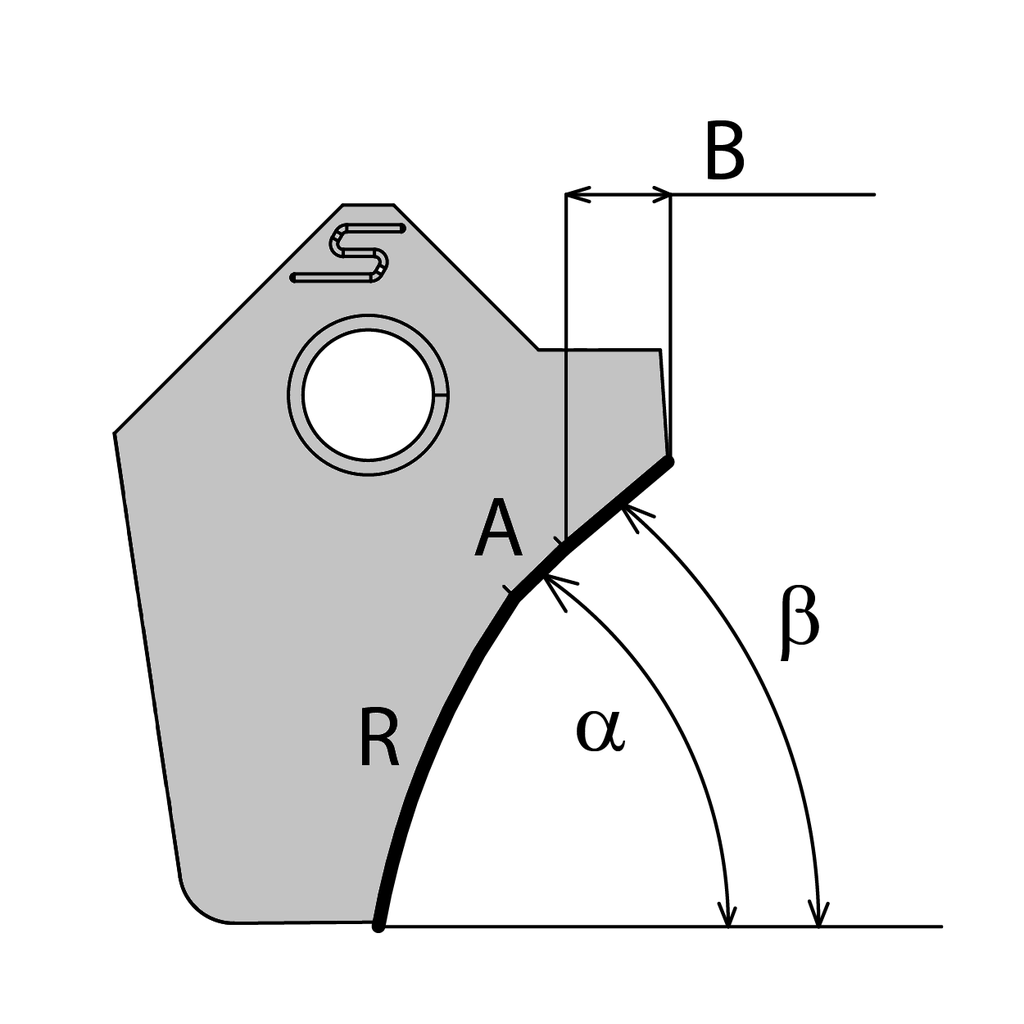

PLAQUETTE DE FORME 45,00- 1,30
| Bit form: Three segments |
| Seat angle (α): 45° |
| Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"] |
| Upper clearance angle: 30° - 35° |
| Upper clearance lenght: 2.01mm [0.0787"] - ∞ |
| Lower clearance angle: 0° - 40° |
| Brut type: B1 Wide & Large |
| Design: Original |
| Radius: 5mm to 20mm |
Référence interne:
019160
Old FR code:
HP1953-B1
Seat angle (α):
45
Seat lenght (A) (A):
1.3
Radius (R):
12
Angle rake:
8
Lower clearance angle (Thêta):
0
Upper clearance angle (Beta):
35
Upper clearance lenght (B):
2.13
Bit form:
2.2
