PLAQUETTE DE FORME 45,00- 1,00

Bit form - Three segments
Seat angle (α)
Seat lenght
Upper clearance angle
Upper clearance lenght
- 1.01 [0.0393"] - 2mm [0.0709"]
Lower clearance angle
Brut type
- A1 Standard
Design
- Original
Radius
- 0mm to 5mm

Ajouter à la liste de souhaits

Contactez-nous

Bit form: Three segments

Seat angle (α): 45°

Seat lenght: 0.51mm [0.0200"] - 1mm [0.0393"]

Upper clearance angle: 35° - 90°

Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"]

Lower clearance angle: 0° - 40°

Brut type: A1 Standard

Design: Original

Radius: 0mm to 5mm

Référence interne: 001285
Old FR code: 41023-A1

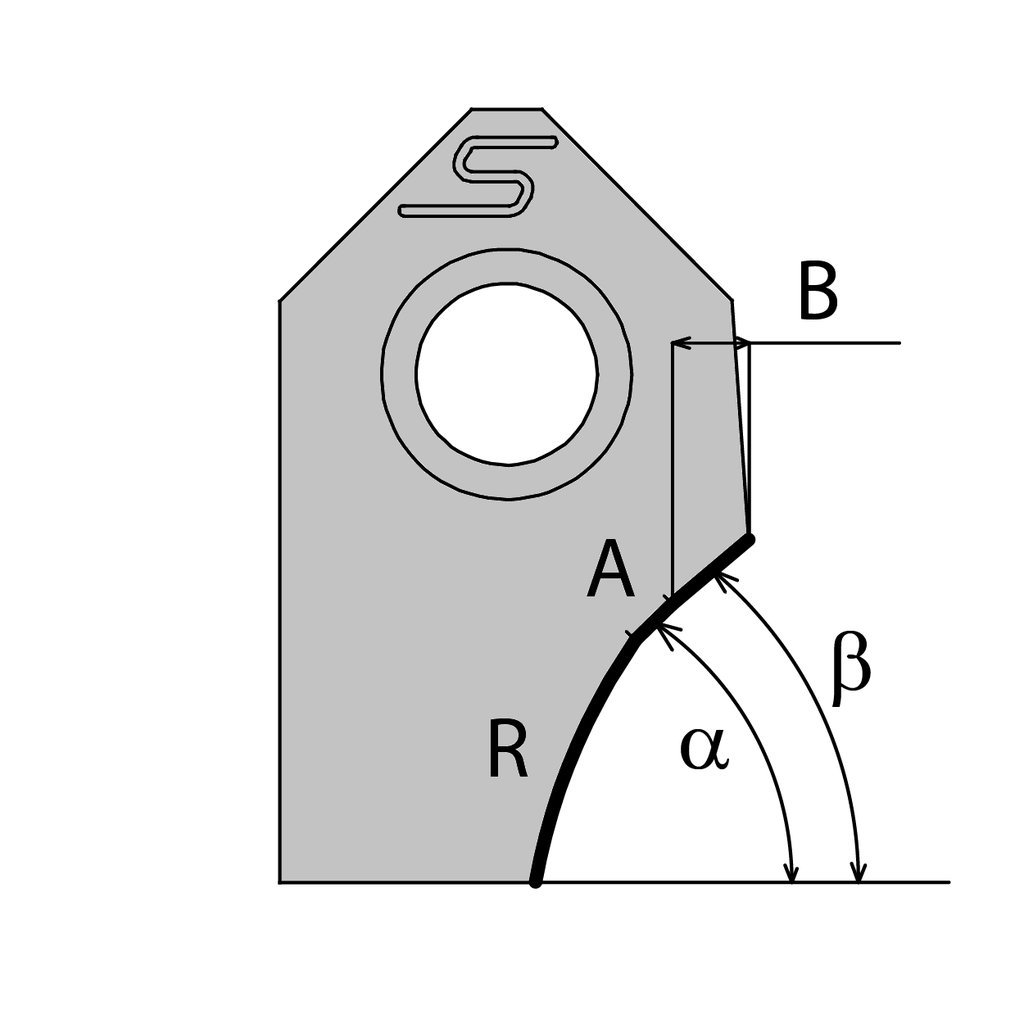

Seat angle (α): 45
Seat width (A): 1
Radius (R): 0.2
Draft angle: 8
Bottom Clearance angle (Thêta): 0
Upper clearance angle ( Beta): 40
Upper clearance width (B): 1.53
Bit form: 2.2
