PLAQUETTE DE FORME 45,00- 2,30

Bit form - Miscellaneous angles
Seat angle (α)
Seat lenght
Upper clearance angle
Upper clearance lenght
- 1.01 [0.0393"] - 2mm [0.0709"]
Lower clearance angle
Brut type
- A1 Standard
Design
- Original
Radius
- 0mm to 5mm

Ajouter à la liste de souhaits

Contactez-nous

Bit form: Miscellaneous angles

Seat angle (α): 45°

Seat lenght: 2.1mm [0.0827"] - 2.5mm [0.0984"]

Upper clearance angle: 30° - 35°

Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"]

Lower clearance angle: 50° - 60°

Brut type: A1 Standard

Design: Original

Radius: 0mm to 5mm

Référence interne: 000997

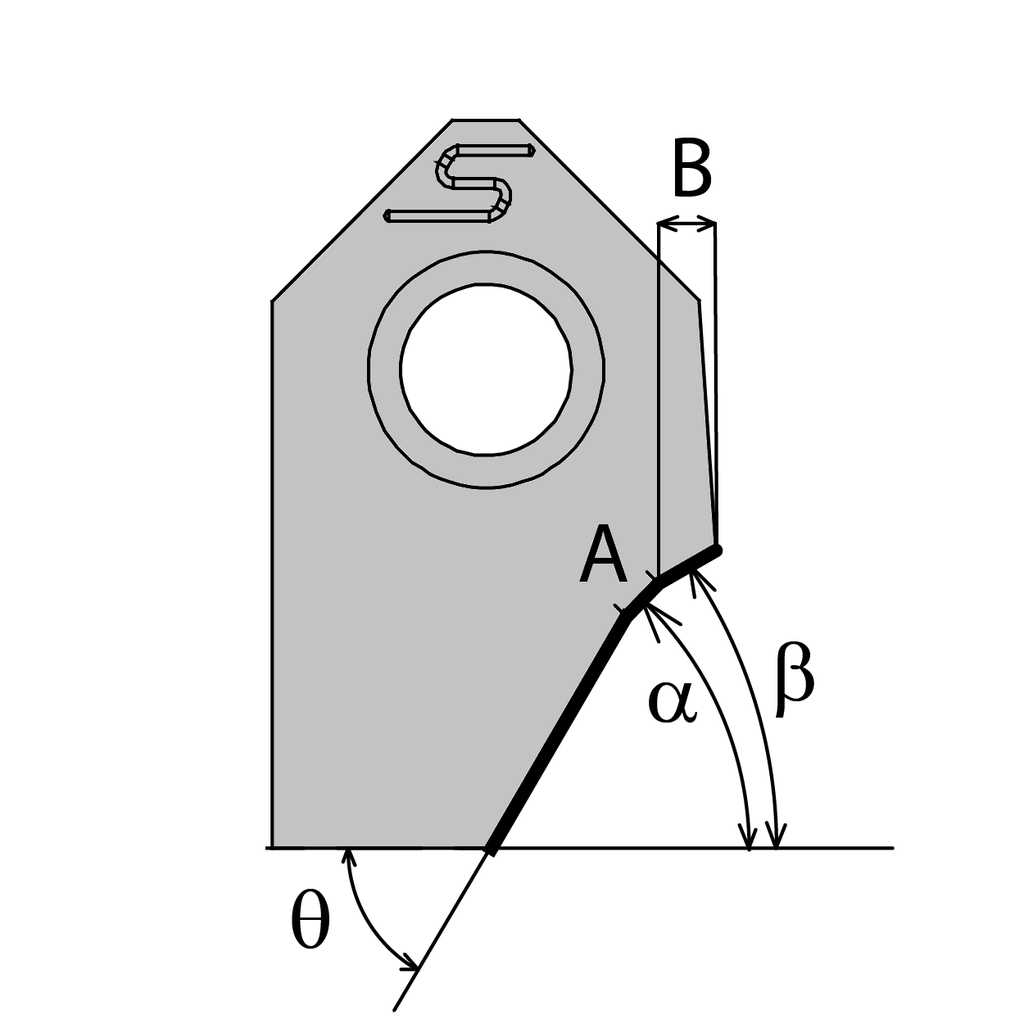

Seat angle (α): 45
Seat width (A): 2.3
Radius (R): 0
Draft angle: 8
Bottom Clearance angle (Thêta): 60
Upper clearance angle ( Beta): 30
Upper clearance width (B): 2
Bit form: 3
