SC303-CARBIDE BIT(15G30U45-A1) 30.00-1.50MM

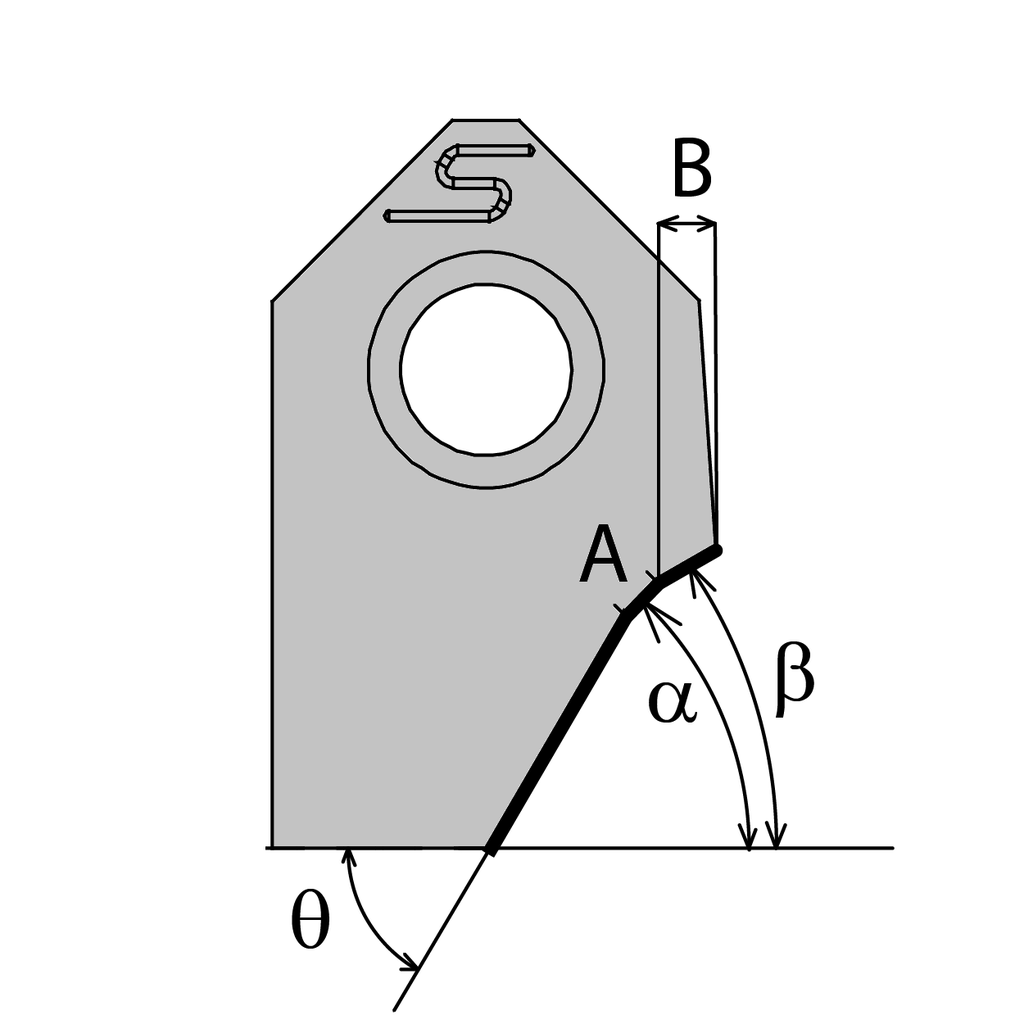

| Bit form: Three angles - 30° |
| Seat angle (α): 30° |
| Seat lenght: 1.01mm ["0.0397] - 1.5mm [0.0591"] |
| Upper clearance angle: 10° - 15° |
| Radius: 0 mm |
| Upper clearance lenght: 1.01 [0.0393"] - 2mm [0.0709"] |
| Lower clearance angle: 40° - 50° |
| Brut type: A1 Standard |
| Design: Original |
Internal Reference:
019164
Old FR code:
15G30U45A1
Seat angle (α):
30
Seat lenght (A) (A):
1.5
Radius (R):
0
Angle rake:
8
Lower clearance angle (Thêta):
45
Upper clearance angle (Beta):
15
Upper clearance lenght (B):
1.4
Bit form:
3
